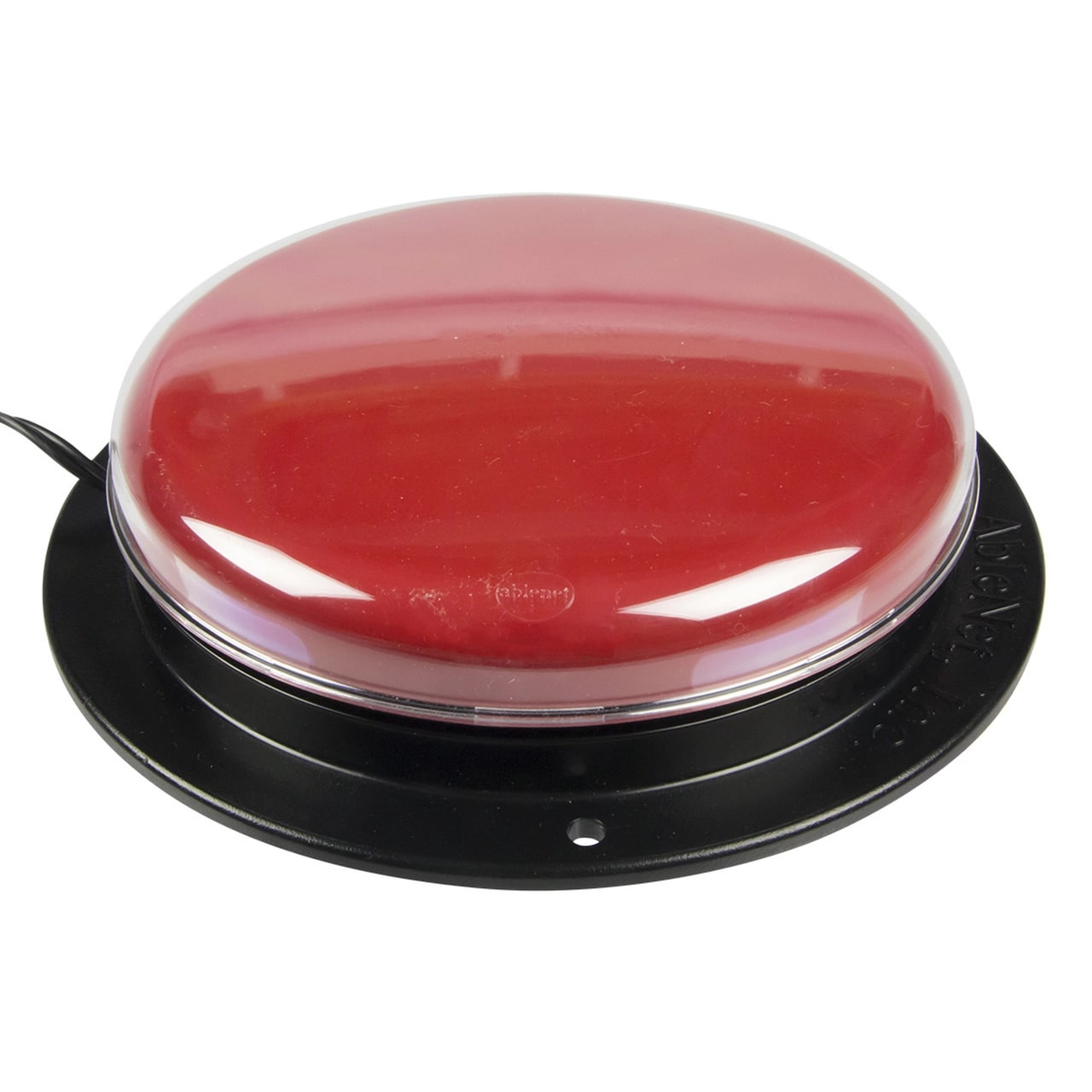

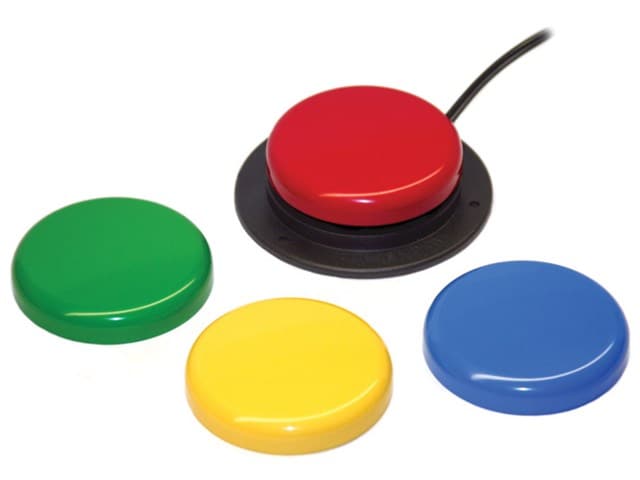

True to its name, the Big Red switch features a 5" activation surface, making it the best choice for persons with visual impairments and persons with physical disabilities who require a larger target area. Switch tops can be removed and replaced with the color of your choice - red, blue, yellow, or green.
Download the Big Red Switch User Manual
Switch Type is Mechanical
Connection Type is Wired
Activation Type is Pressure
Activation Surface is 5"
Activating Force is 5.5 oz. of pressure
Travel before activation is 0.045"
Current is 30VDC (max 1A)
Feedback is Auditory click, Visual, Tactile
Plug Size is 1/8" or 3.5-mm mono
Mounting Plate is Universal Mounting Plate
5" D x .7" H
There is currently no demonstration video for the Big Red Twist.
