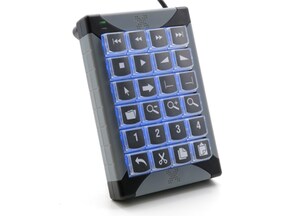

The new XK-24 with MacroWorks 3.1 software combines the tradition of rugged, reliable X-keys with added features for the same price as our X-keys Desktop. With four more keys in a smaller footprint, the XK-24 sports a new co-injected case suitable for handheld applications.
Clear key lenses keep your printed or hand written legends securely in place and protect them from wear while making it quick and easy to update them. The full travel keys have the same feel as your standard keyboard. A wide variety of key caps and key blockers make it easy to customize the XK-24 into a simple control surface like a bump bar or a live audio switcher.
24 relegendable keys
Suitable for handheld, desktop, or mounted use
Addressable blue and red backlighting for each key
Create a bump bar or custom control pad with keycaps and key blockers
Includes MacroWorks 3 software for Windows and ControllerMate for Mac OS-X
Comprehensive Software Development Kit for programmers
NEW Linux Software Development Kit
USB HID class device (RS-232 version available)
MacroWorks 3.1 Software provides simple, intuitive programming for launching applications, opening files or accessing directories. Inserting special characters and symbols as Unicode text strings adds another new unique feature to the X-keys. The scripting language behind MW3 is VB.NET. The simple, straight forward language makes programming advanced features and customization for unique configurations easier than ever before. A new feature allows the user to easily create their own scriptlets to share or duplicate on other keys or devices.
Instantly program macros, hot keys or multiple steps
One tap access to your favorite tools and settings
Insert Unicode foreign language letters, symbols, or phrases
Define unique key sets for each program you use
Launch programs or open files or directories
Paste e-mail addresses, words, sentences, or paragraphs
Our new Pi3 firmware offers a host of new capabilities to the developer including USB joystick, keybaord and mouse end points and our newly developed Reflector feature. Our Reflector feature allows the developer to send outbound messages to the X-keys which can be reflected back to the Operating System in keyboard, mouse or joystick data stream.
A new feature offers glowing red or blue backlighting with adjustable intensity. The backlighting LEDs can be controlled with simple scripting through MW3 or messages from your software via our SDK. Each key has one blue and one red LED under it and the state of each LED is individually addressable.
Our Pi3 dongle feature offers OEMs a measure of security to protect software from piracy and tag an X-keys with a unique encrypted signature to ensure the developer is the sole provider of customized hardware.
Four HID endpoints
New reflector feature "reflects" messages back as a keyboard, mouse, or game controller
Dual backlighting for reach key
Dongle feature for developers
Key Features of MacroWorks 3.1:
Send keystrokes and macros to any application
Insert Unicode
Launch programs
Open directories, folders, or files
Use the same key to send different commands depending upon the application
Combine multiple mouse, keyboard, and special functions on the same key
Program Hardware Mode keyboard and mouse commands
Create and print paper key legends
Create and edit custom scripts with Script Editor
Change backlighting settings
Change USB Endpoints
