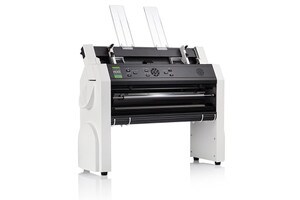

Everest-D V5 is the most compelling cut-sheet fed braille embosser with the ability to print on a flexible range of user defined Braille and paper formats. New to V5 is the possibilities with new modern features like Wi-fi connection, embossing from USB memory and braille printing from mobile devices.
An even better Everest-D
Though the physical appearance has not changed, the Everest-D V5 has been updated to include all the latest Braille techniques and compatibility with mainstream technology.
A sheet feeder for Braille
Braille on cut-sheet paper is the future. The technological solution of the Braille optimized sheet feeder used in the Index Braille Everest-D V5, is the secret sensation.
Horizontal & Vertical printing
Emboss Braille horizontally or vertically (sideways) using the Everest-D V5 Braille embosser.
Region-defined layouts
Select and save region specific layouts or operate using 1-9 layout options including user-defined layouts.
Light to sharpen the design
Light is an important design component in all V5 embossers and a hallmark for its technology level. It both guides the user interface and decorates the embosser.
Common features
An enjoyable user interface
The control panel is a local user interface which allows the user to interact with the braille embosser and provides complete embosser control.
BrailleApp printing and more
Index V5 printers support the use of the BrailleApp. The BrailleApp is available when the V5 printer is connected to your LAN, simply type the IP address of your printer in the search window of the browser. The BrailleApp is now presented on PC's, mobile phones, pads and adapted to the screen size.
Supports all major operation systems, Windows, iOS, Android, Linux and Unix
Print braille from standard files (docx, doc, pdf, literary or contracted braille)
Edit the translated braille file in six-key braille characters or MIT ASCII
Manage Braille layout
Manage printer communication, USB, WiFi, Bluetooth
Monitor printer status icons, update, Bluetooth, WiFi, Wired network, USM memory on the printer and print status.
Even better braille quality
The V5 solenoids (hammers) offer even better braille dot quality, a longer life cycle, higher embossing speed and lower power consumption.
idB: Index-direct-Braille
idB is a direct braille printing application built in the V5 braille embosser. It is available free of charge and compatible with Windows, Mac and Linux computers.
Affordable price
Full of truly useful features and endless braille embossing opportunities, Index V5 braille embossers still maintain the most affordable braille printer price comparatively.
Acapela synthetic speech
In V5 embossers the speech feedback is generated by Acapela synthetic speech. This enables easy feedback when controlling the embosser user interface.
Interpoint Braille
High quality Braille on both sides of the paper, known as interpoint or double-sided braille, is an Index Braille trademark.
Remote support
Get Index Braille embosser support from anywhere in the world by simply connecting to our remote support function embedded in the V5 embosser.
USB host port
Connect a USB memory stick directly to any Index V5 braille embosser via USB host port to directly print braille documents or backup and restore embosser settings.
| General |
| Warranty | 1 year |
| Braille |
| Embossing speed cps | 100 cps |
| Single-sided | Yes |
| Double-sided | Yes |
| Vertical printing (newspaper) | Yes |
| Braille font | 2.2, 2.5, 3.2 mm |
| Tactile resolution | 50 dpi |
| Forming method | 13 hammers/anvils |
| Paper |
| Tractor-fed | - |
| Single sheet feeder | Yes |
| Paper roll | - |
| Sheet feeder size | 50 pages |
| Paper weight | 120-180 g/m2 (80-110 lbs) |
| Paper width | 5.2-11.7 in |
| Paper length | 4.7-23.2 in |
| Paper formats | Adjustable |
| Measurements |
| Height | 56 cm (22.05 in) |
| Width | 45 cm (17.72 in) |
| Depth | 18 cm (7.09 in) |
| Net volume | 45.36 dm3 (1.6 ft3) |
| Net weight | 12 kg (26.4 lbs) |
| Noise level | 80 dB(A) |
| Noise level with acoustic protection | 60 dB(A) |
| Communication |
| User interface | Braille and ink labelled panel with multilingual speech feedback |
| USB | Yes |
| Network | Yes |
| Serial port | Yes |
| Web | Yes |
| Firmware upgrade | Via internet always free of charge |
| LED feedback | |
| Printer drivers | Windows 32/64 bits |
| Electrical |
| Voltage | 100-240 V AC |
| Power max | 140 W |
| Power stand by | 5 W |
| Eco power down | 0.0.5 W |
