Home Blindness > Braille Embossers >

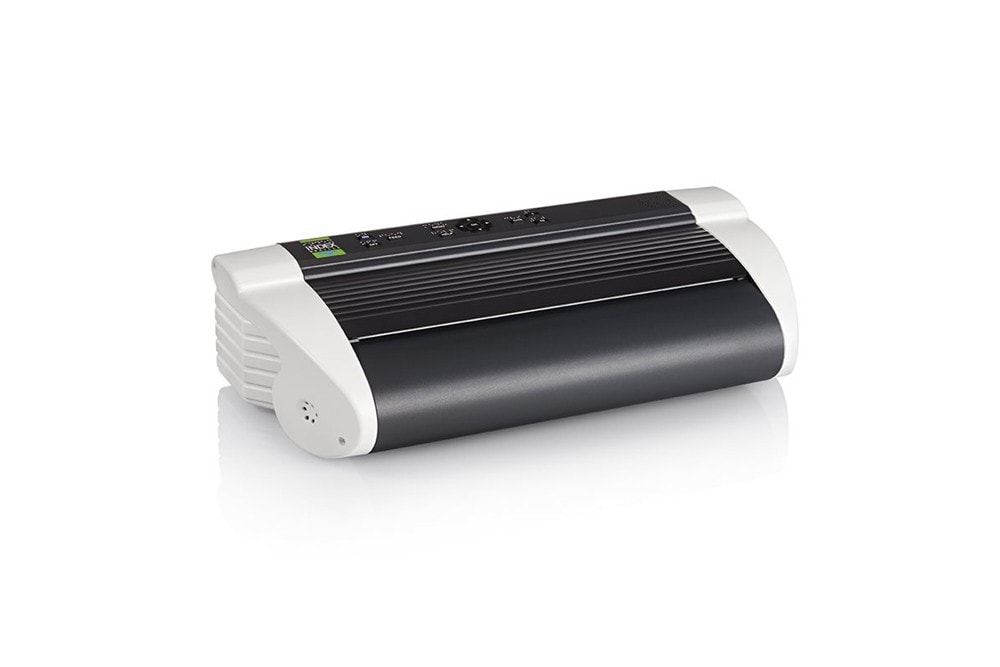

index basic d embosser.jpg

Index Basic-D V5 Embosser

SKU: VS8609

Quantity     Add To Cart
Print Page

Product Description

Basic-D V5 is a compact and powerful tractor-fed Braille printer as it has always been; but now it's available with new modern features like Wi-fi connection, embossing from USB memory and braille printing from mobile devices.

An even better Basic-D Though the physical appearance has not changed, the Basic-D V5 has been updated to include all the latest Braille techniques and compatibility with mainstream technology.

Region defined layouts Select and save region specific layouts or operate using 1-9 layout options including user defined.

Horizontal & Vertical Braille printing Emboss Braille horizontally or vertically (sideways) on the page using the Basic-D V5 Braille embosser.

Light to sharpen the design Light is an important design component in all V5 embossers and a hallmark for its technology level. It both guides the user interface and decorates the embosser.

An enjoyable user interface The control panel is a local user interface which allows the user to interact with the braille embosser and provides complete embosser control.

Emboss & manage from portable devices Index Braille V5 embossers are compatible with portable devices. With the use of your portable device and Index's own idB (free), endless braille embossing options are available directly from your smart phone, tablet or portable PC.

Even better braille quality The V5 solenoids (hammers) offer even better braille dot quality, a longer life cycle, higher embossing speed and lower power consumption.

idB : Index-direct-Braille idB is a direct braille printing application built in the V5 braille embosser. It is available free of charge and compatible with Windows, Mac and Linux computers.

Affordable price Full of truly useful features and endless braille embossing opportunities, Index V5 braille embossers still maintain the most affordable braille printer price comparatively.

Acapela synthetic speech In V5 embossers the speech feedback is generated by Acapela synthetic speech. This enables easy feedback when controlling the embosser user interface.

Remote support Get Index Braille embosser support from anywhere in the world by simply connecting to our remote support function embedded in the V5 embosser.

Interpoint Braille High quality Braille on both sides of the paper, known as interpoint or double-sided braille, is an Index Braille trademark.

USB host port Connect a USB memory stick directly to any Index V5 braille embosser via USB host port to directly print braille documents or backup and restore embosser settings.

Features You'll Love


 General
 Warranty 1 year
 Braille
 Embossing speed cps 100 cps
 Single-sided Yes
 Double-sided Yes
 Vertical printing (newspaper) Yes
 Braille font 2.2, 2.5, 3.2 mm
 Tactile resolution 50 dpi
 Forming method 13 hammers/anvils
 Paper
 Tractor-fed Yes
 Single sheet feeder -
 Paper roll -
 Sheet feeder size
 Paper weight 120-180 g/m2 (80-110 lbs)
 Paper width 5-13 in
 Paper length 1-17 in
 Paper formats Adjustable
 Measurements
 Height 13 cm (5.12 in)
 Width 52 cm (20.47 in)
 Depth 26 cm (10.24 in)
 Net volume 17.58 dm3 (0.62 ft3)
 Net weight 7.6 kg (16.72 lbs)
 Noise level 80 dB(A)
 Noise level with acoustic protection 60 dB(A)
 Communication
 User interface Braille and ink labelled panel with multilingual speech feedback
 USB Yes
 Network Yes
 Serial port Yes
 Web Yes
 Firmware upgrade Via internet always free of charge
 LED feedback 3 LED on front panel and 4 on back side
 Printer drivers Windows 32/64 bit
 Electrical
 Voltage 100-240 V AC
 Power max 140 W
 Power stand by 5 W
 Eco power down 0.0.5 W
 General
 Warranty 2 years
 cps/1000 USD 27
 Measurements
 Height 13 cm (5.12 in)
 Width 52 cm (20.47 in)
 Depth 26 cm (10.24 in)
 Net volume 17.58 dm3 (0.62 ft3)
 Net weight 7.6 kg (16.72 lbs)
 Noise level 80 dB(A)
 Noise level with acoustic protection 60 dB(A)
 Paper
 Tractor-fed Yes
 Cut sheet fed -
 Paper roll -
 Sheet feeder size
 Paper weight 120-180 g/m2 (80-110 lbs)
 Paper width 100-325 mm (3.9"-12,8")
 Paper length 25-431mm (1"-17")
 Adjustable paper size Yes

Specifications

 Communication
 User interface Braille and ink labelled panel with multilingual speech feedback
 USB Yes
 Network Yes
 Serial port Yes
 Web Yes
 Firmware upgrade Via internet always free of charge
 LED feedback 3 LED on front panel and 4 on back side
 Printer drivers Windows 32/64 bit
 Electrical
 Voltage 100-240 V AC
 Power max 140 W
 Power stand by 5 W
 Eco power down 0.0.5 W
