SmartNav 4

With an industry leading price point and the most advanced feature set available, the SmartNav cursor control solution stands above the rest. Unlike other head tracking systems on the market, SmartNav integrates an innovative hardware design with an easy to customize software package, resulting in a complete solution for both the ergonomic and assistive technology community.



HowSmartNav Works: SmartNav uses an infrared (IR) camera to track your head movements. SmartNav tracks reflections from a tiny dot, which you can place on the part of your body you'd like to control the cursor with. Preferred options include:

• Head

• Hand
• Hat
• Glasses
• Mic Boom

Where do I put the SmartNav?: SmartNav mounts on top of your monitor, laptop or communication device facing you. SmartNav can also be threaded onto a mini tripod and sit next to your computer. The device can be placed anywhere as long as it can see the reflective accessory you've chosen to wear.

How Much do I Move?: Less than an inch of head movement is more than enough to move the cursor across your entire screen. This is also adjustable in the software SPEED settings. SmartNav has a 45 degree Field of View (FOV), and usually sits about 2 feet away from your head. Thus you have almost two feet of free "head space" in which to move that simple inch.

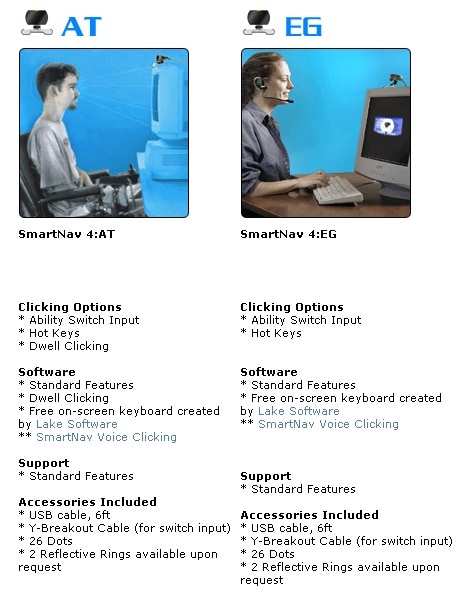

How do I Click?: SmartNav offers multiple clicking options.

• Hotkeys: Re-map keys from your keyboard and assign them to emulate the Left, Right and Middle mouse buttons.
• Dwell-Clicking Software: Click by hovering the cursor in one spot for a small (and adjustable) amount of time. A full dwell-clicking system and on-screen keyboard are included in the AT software package, allowing for total hands free operation.
• Ability Switches: Industry standard input switch support allows you to plug two click switches into SmartNav for more clicking options.

Download the SmartNav Product Manual

• 500 MHz Processor
• USB 1.1 or 2.0 port
• CD-ROM drive
